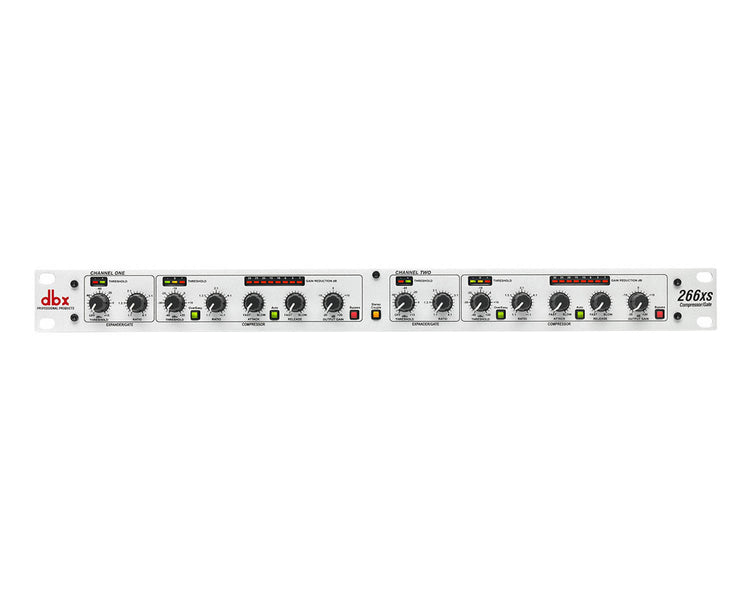

DBX266XS - dbx 266XS Dual Compressor or Gate Jack or XLR Silver 1U Image 1

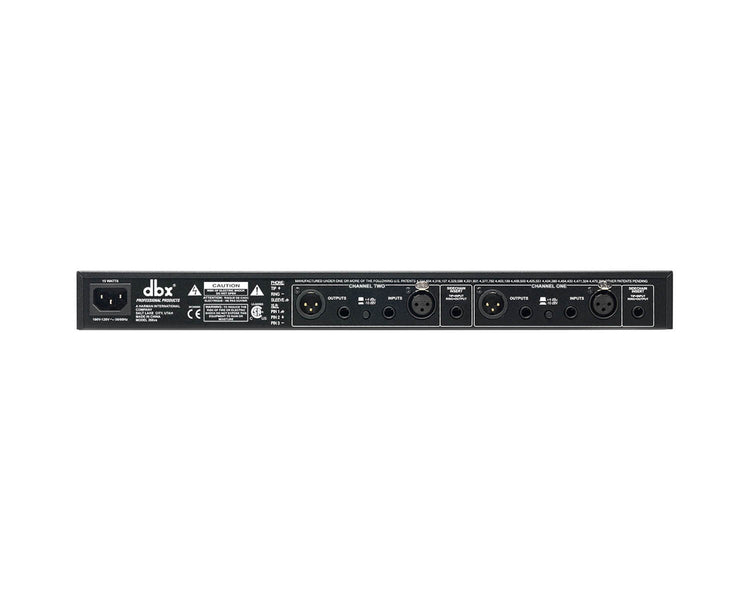

DBX266XS - dbx 266XS Dual Compressor or Gate Jack or XLR Silver 1U Image 2

Adding a dbx® 266xs Compressor/Limiter/Gate to your live sound rig or studio gives you more dynamic control to help create a more polished, professional sound. Having compression in your audio chain gives you the ability to smooth out uneven levels, add sustain to guitars and fatten up your drums. It also makes it easy to bring vocals to the front of your mix - adding greater clarity and making them stand out from the surrounding instruments.

dbx knows compressors...after all we invented them! The 266xs is the latest in a long line of the world most successful compressors from the inventors of the technology. Its patented Overeasy® compression technology provides smooth and musical performance while the AutoDynamic™ attack and release controls, found only on dbx compressors, puts great sound within easy reach. The 166xs can operate in stereo or dual-mono modes, has true RMS power summing and features quality XLR and 1/4" TRS inputs and outputs. It cuts no corners on visual feedback with gain reduction metering and easy-to-read backlit switches.

Product Features

Error proof operation to smooth uneven levels, add sustain to guitars, fatten drums or tighten up mixes
New gate timing algorithms ensure the smoothest release characteristics
Program-adaptive expander/gates
Great sounding dynamics control for any type of program material
Separate precision LED displays for gain reduction, compression threshold and gate threshold allow quick, accurate setup
Stereo or dual-mono operation
Balanced inputs and outputs on 1/4" TRS and XLR connectors
Side Chain insert
Classic dbx® "Auto" mode

Product Specifications

Inputs

Connector: 1/4" TRS, female XLR (pin 2 hot)
Type: Electronically balanced/unbalanced, RF filtered
Impedance: 40kΩ balanced, 20kΩ unbalanced
Maximum Level: >+22dBu Balanced or Unbalanced

Outputs

Connector: 1/4" TRS, female XLR (pin 2 hot)
Type: Impedance-balanced/unbalanced, RF filtered
Impedance (+4dBu): 100Ω balanced, 50Ω unbalanced
Impedance (-10dBu): 1kΩ balanced, 500Ω unbalanced
Maximum Level: >+21dBu balanced/unbalanced into 2kΩ or greater, >+18dBm balanced/unbalanced (into 600Ω)

Sidechain Insert

Connector: 1/4" TRS Phone, Normalled: Ring = Output (send); Tip = Input (return)
Impedance: Tip = >10kΩ (Input), Ring = 2kΩ (Output)
Maximum Level: Tip = >+22dBu (Input), Ring = >+20dBu (Output)
