SX215 2x15

Price:: RRP: £3,000.00 inc VAT
Code:: MAUSX215
Manufacturer Code:: SX215
Brand:: Martin Audio

Main Features

Dual-driver, direct radiating subwoofer
Dual long excursion 15” (380mm)/4” (100mm) voice coil drivers with water-resistant cones
Very high output capability
Plywood enclosure with flying inserts
Large ports for reduced air noise
Finish: Black

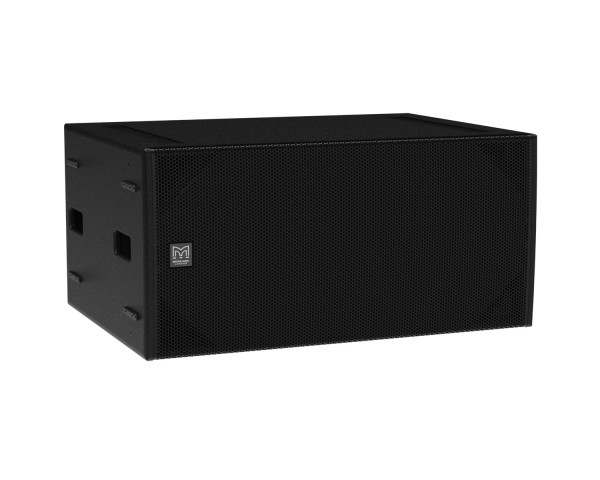

SX215 2x15" Direct Radiating Compact Subwoofer 1600W Black

The SX215 is a very powerful, compact subwoofer with an operating range of 45-100Hz + 3dB. Featuring two long excursion 15” (380mm)/4” (100mm) voice coil drivers with water-resistant cones and triple roll surrounds, it delivers exceptional low frequency extension and impact from such a compact enclosure. Eight reflex ports with a large frontal area increase LF output efficiency and reduce turbulent air noise at high levels.

Finished in hardwearing textured paint, the SX215 incorporates threaded inserts for eyebolt suspension of a single enclosure, while an M20 threaded plate facilitates pole-mounting of Martin Audio full-range enclosures. Four ergonomic handles assist handling and installation, and the drivers are protected by a coated steel grille with an acoustically transparent fabric backing.

The SX215 can be used singly, or stacked using locating skids and mating channels at the base and top surface of each enclosure. Cardioid operation can be achieved by arranging the SX215 in forward and rear-facing pairs, with each enclosure powered individually in conjunction with dedicated DSP presets.

The SX215 is available in black or white. As standard, it is supplied without castors, which are available as an accessory pack.

Product Features

Dual-driver, direct radiating subwoofer
Dual long excursion 15” (380mm)/4” (100mm) voice coil drivers with water-resistant cones
Very high output capability
Plywood enclosure with flying inserts
Large ports for reduced air noise
Finish: Black

Product Specifications

Type: Dual Driver, Direct radiating subwoofer
Crossover Frequency: 100Hz
Frequency Response 4π (5): 45Hz - 100Hz ± 3dB, -10dB @ 36Hz
Drivers: LF: 15” with 4” Voice coil, Ferrite Motor
Sensitivity:
- (2W 1m half space) 106dB
- (1W 1m half space) 103dB
Nominal Impedance: 8 Ohms
Rated Power: AES 1600W, PEAK 6400W
Maximum SPL (System): 130dB continuous, 142dB peak
Dispersion: Omni-Directional/ or Cardioid (paired)
Connectors: 2 x NL4
Pin Connections (INPUT): 1+/- or 2+/-
Pin Connections (LINK): 1+/- and 2+/-
Dimensions:
- (W) 500mm, (H) 961mm, (D) 679mm (807mm with Casters)
- (W) 37.83 ins, (H) 18.23ins, (D) 26.73ins (31.77ins with Casters)
Weight: 64kg (141 lbs)
