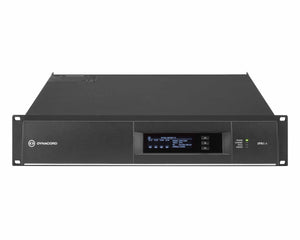

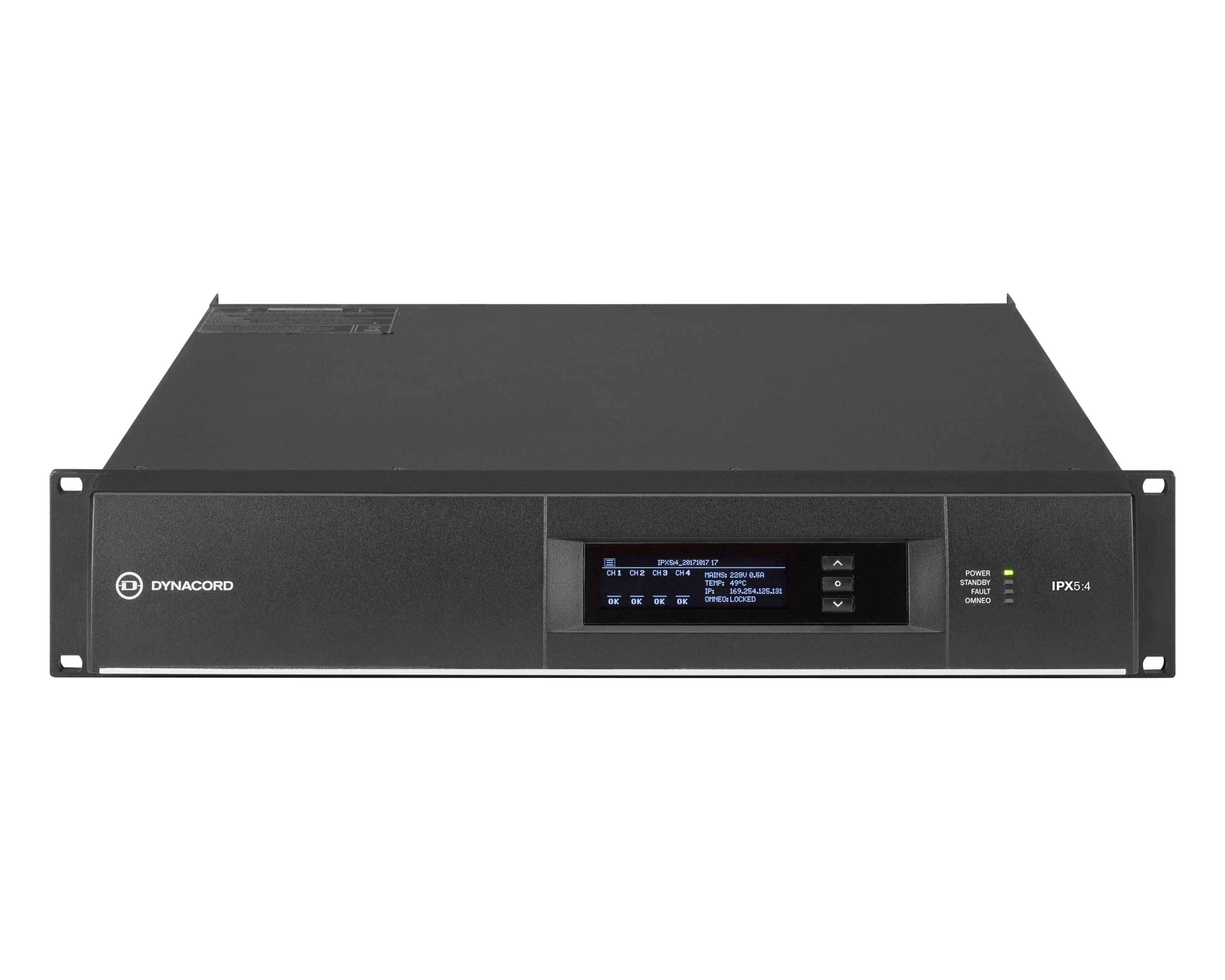

DYNIPX54 - Dynacord IPX 5:4 DSP Install Power Amp 4x1250W @ 4ohm Dante 2U Image 1

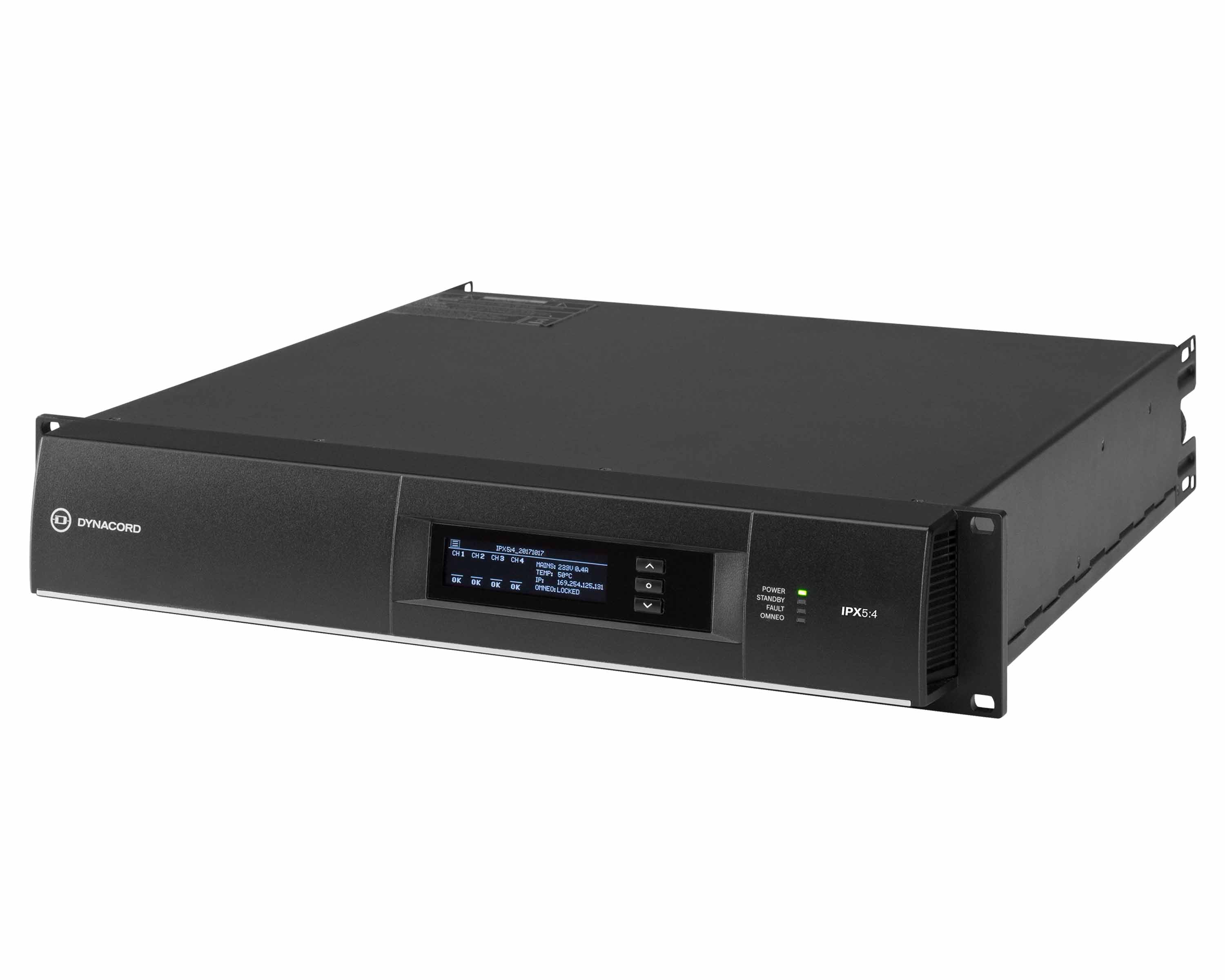

DYNIPX54 - Dynacord IPX 5:4 DSP Install Power Amp 4x1250W @ 4ohm Dante 2U Image 2

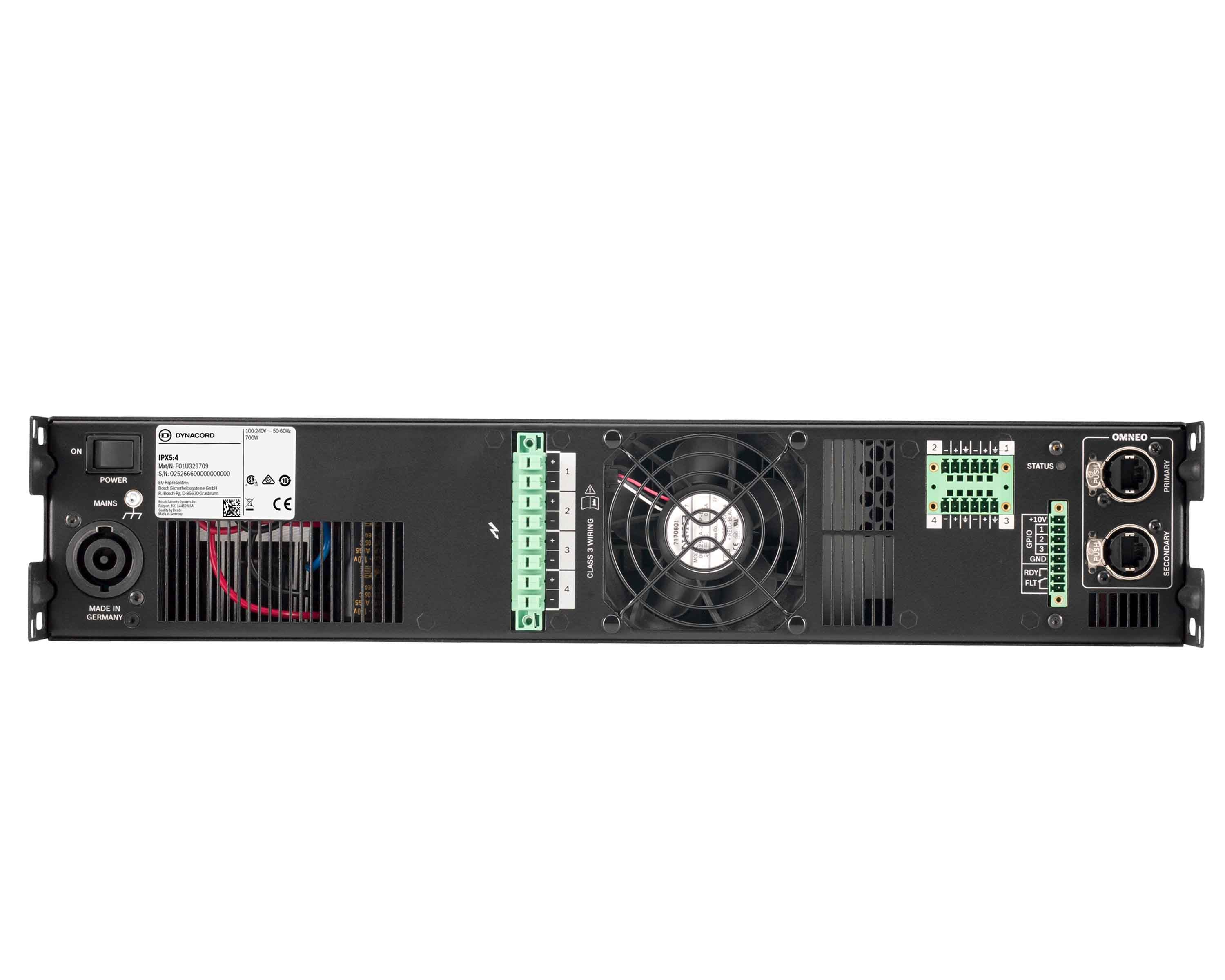

DYNIPX54 - Dynacord IPX 5:4 DSP Install Power Amp 4x1250W @ 4ohm Dante 2U Image 3

IPX series multi-channel power amplifiers mark the new, unprecedented standard for sound system amplification in mid to large-sized permanent installations. Our new high-performance amplifiers offer seemingly unlimited power and pristine audio quality. IPX series multi-channel power amplifiers are featuring OMNEO IP networking architecture and groundbreaking audio performance. They embody several proprietary amplifier technologies developed by Dynacord engineering, one of the most experienced R&D teams in the audio industry.

Product Features

IPX 5:4 DSP Power Amplifier
4 x 1250 W multi-channel installation DSP amplifier with digitally controlled PFC supply
Fully integrated DSP with high-resolution 96 kHz processing and FIR Drive
Dante and OCA integration via OMNEO with fallback options
Parallel, bridged and parallel-bridged drive modes with 70/100V and low impedance operation
High efficiency Eco Rail technology for lower operating costs

Product Specifications

General

Voltage Gain
- Low-Z mode, ref.1 kHz: 32.0 dB, adjustable 20.0-44.0 dB
- Direct Drive mode 33.2/36.2/39.2/42.2 dB for 70/100/140/200 V
Input Sensitivity
- Low-Z mode, Max. Output Voltage: 10.7 dBu (2.66 V), adjustable -1.3-22.7 dBu
- Direct Drive mode: 6 dBu (1.55 V), fixed
THD 3 dB below max, AES17, 1 kHz: < 0.05 %
DIM 100 3.15 kHz, 15 kHz: < 0.15 %
IMD-SMPTE 60 Hz, 7 kHz: < 0.05 %
Crosstalk ref. 1 kHz, 12 dB below Max, 8 Ω: < -80 dB
Frequency Response ref. 1 kHz, analog in to speaker out: 20 Hz to 20 kHz (±0.5 dB)
Damping Factor 20 Hz to 200 Hz, 8 Ω: > 400
Output Stage Topology: Class D, fixed frequency
Signal to Noise Ratio Amplifier
- A-weighted, analog input: 112 dB
- A-weighted, digital input: 115 dB
Output Noise
- A-weighted, analog input: < -70 dBu
- A-weighted, digital input: < -73 dBu
Analog Audio Input/Thru
- Type: 2 x 6-pin Euroblock, male
- Maximum Input Level: +21 dBu
- Input Impedance, active balanced: 20 kΩ
- Reference level equal to digital input: +21 dBu for 0 dBFS
Speaker Output: 1 x 8-pin Euroblock, 6mm, female
Power Consumption
- Rated power consumption (see BTU table) 700 W
- 1/8 Maximum Output Power at 4 Ω: 900 W
- Idle Mode (no input signal): 75 W
- Standby Mode: < 15 W
Sampling rate: 48 kHz/96 kHz, OMNEO/Dante synchronized
Dante Network Latency: typ. 1.00 ms
User EQ: 12 filters per channel, selectable as PEQ, LoShelv, Hi-Shelv, Lo-ShelvQ, Hi-ShelvQ, Hi-Pass, Lo-Pass and Notch; 2 filters of them with additional asymmetric filter type
User Delay: 0 to 2000 ms per channel (units: µs, ms, s, cm,m, inches, feet)
Array EQ: 5 filters per channel, selectable as PEQ, LoShelv, Hi-Shelv, Lo-ShelvQ, Hi-ShelvQ, Hi-Pass, Lo-Pass, and All-Pass
Array Delay: 0 to 500 ms per channel (units: µs, ms, s, cm, m, inches, feet)
Speaker EQ: 10 filters per channel, selectable as PEQ, LoShelv, Hi-Shelv, Hi-Pass, Lo-Pass and All-Pass
Speaker X-Over: Hi-Pass, and Lo-Pass per channel, 6/12/18/24/30/36/42/48 dB Bessel/Butterworth, 12/24/48 dB Linkwitz-Riley; Alignment Delay, 0 to 20 ms per channel
Speaker FIR: Up to 1025 taps, Linear Phase Filter, Linear Phase Brickwall X-Over
Speaker Limiters: Peak Anticipation Limiter and RMS/TEMP Limiter per channel
Other Functions: Source Selection and Mix, Level, Mute, Polarity, Sine and Noise Generator, Pilot Tone Generator and Detection, Level Meters, Impedance Measurement and Load Monitoring
Memory
- DSP Presets: 1 Factory + 20 User
- Speaker-Pool Presets: 30 Speaker Settings
Source Supervision and Fallback: Pilot Tone supervision at Analog and OMNEO/ Dante inputs, switchover to alternative Source Selection
Network
- Type: 2 x Neutrik EtherCON/RJ45, redundant PRIMARY/SECONDARY
- General: 1000base-T/100base-TX, integrated switch
- Network Audio Inputs: 8 channels, 48/96 kHz, OMNEO/Dante format
- Network Audio Outputs (Monitor): 2 channels, 48/96 kHz, OMNEO/Dante format
Mains Input: 1 x Neutrik powerCON-HC
GPIO Control Port
- Type: 1 x 8-pin Euroblock, male
- Ports and Operating Modes: 3 x GPIO, switchable Analog In/Digital In/Digital Out
- Analog Input Range: 0 V to +13 V, 40 kΩ input resistance
- Digital Input Limits: ON: < 1.5 V OFF: > 2.0 V, internal Pull Up (10 kΩ)
- Digital Outputs ON: Output switched to GND, max. 200 mA OFF: Open Collector (40 kΩ to GND)
- Reference Voltage Output: +10 V, max. 200 mA, supervised, short circuit protected
- READY/FAULT contact: Galvanic isolated relay, max. 30 VDC/500 mADC
User Interface
- Display: Black/white OLED 256 x 64 pixel
- Front panel indicators: 4 x status LEDs (POWER, STANDBY, FAULT, OMNEO)
- Front panel operating elements: 3 buttons (UP, ENTER, DOWN)
- Rear panel indicators: 1 x status LED (STATUS)
- Rear panel operating elements: Mains Switch
Power Requirements: 100 V to 240 V, 50 Hz to 60 Hz AC
Power Supply Topology: Switching Mode Power Supply with digital controlled Power Factor Correction
Protections: Audio Limiters, High Temperature, DC, HF, Short Circuit, Back-EMF, Peak Current Limiters, Inrush Current Limiters, Turn-on Delay, Mains Circuit Breaker Protection, Mains Over-/Under voltage Protection
Cooling: Front-to-rear, temperature controlled fans, supervised
Ambient Temperature Limits: +5 °C to +40 °C (+40 °F to +105 °F)
IEC Protection Class: Class I (grounded)
Electromagnetical Environment: E1, E2, E3
Colour: Black
